Networks Overview Pane

When you have selected a Network to explore from the Networks Pane, the Network Overview pane is displayed. When you select:

a node (or combination of nodes) in the Overview panel , the results are displayed in a Node Table .
a link (or combination of links) in the Overview panel , the results are displayed in a Link Table.
the Open/Close icon above the Overview panel will close the panel giving more room to view the Network Table.
the Open/Close icon on the left of the Overview panel will open the Networks panel, allowing you to choose a different network to explore.

On the Overview pane, you can:

	à	Select a Node (entity) to view the Node Table. Selecting the Node name, e.g. Person, selects just that Node. Selecting the Node checkbox allows you to select multiple nodes.
	à	Select a Link to view the Link Table. Selecting the Link name, e.g. Postion-location, selects just that Link. Selecting the Link checkbox allows you to select multiple links.
	à	Select the down arrow next to a Node or Link to display the advanced actions menu.
	à	Shows the Node Table. This is the same as simply selecting the Node name to display the Node table.
	à	Allows you to add an additional Node record, for example to add another Person to the Persons Node. See Create a New Node
	à	Opens the Refine Clusters panel for this Node type. See Refine cluster nodes.
	à	Opens the Edit Schema pop-up for this Node type.
	à	Deletes all Node records for that Node type. For example, it deletes all persons of the Person type. If you select this option, a pop-up is displayed to confirm the deletion.
	à	Creates and copies a link to the Node/Link table. You can add this link to your documents or project pages.

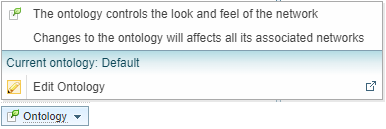

	à	At the bottom of the Overview panel, you can select the Ontology dropdown to link to the Ontology configuration currently applied to this network. See Ontology Configuration
	à	Search the network table. See Search the Network
	à	Search using a previously saved search query See Use a Saved Search
